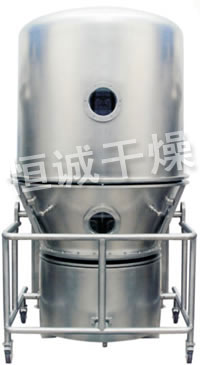

GFG High Efficiency Fluidizing Dryer (Fluid Bed)
Description: Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber , the state of fiuidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Details:

GFG High Efficiency Fluidizing Dryer (Fluid Bed)Working Principle
   Purified and heated air is introduced from the bottom through suction fan and passed through the screen plate of raw material. In the work chamber , the state of fiuidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and the raw material is dried quickly.
Characteristics
◎The structure of fiuidization bed is of round so as to avoid dead corner .
◎Inside the hopper there is a stirring device in order to avoid agglomeration of raw material and orming canal of flow .
◎The granule is discharged through the method of turning over . It is very convenient and full. The discharged system can be designed as request too.
◎It is operated at he conditions of negative pressure and seal. The air is filtered.
◎Therefore it is simple in operation and convenient for cleaning. It is an ideal equipment that is in conformity .
◎The drying speed is fast and the temperature is uniform. The drying time is 20-30 minutes normally.
Material to be dried
Screw extruded granules, sway produced YK series Granules and granules produced by GHL series Granulator .
Suitable for drying humidity block or powder raw material in Pharmaceutical, foodstuff, feed, chemical industries and so on elds.
Large granules, small blocks and adhesive material.
The materials that volumes migh vary during drying process.
Flow chart
GFG High Efficiency Fluidizing Dryer (Fluid Bed)
Technical Parameter

Item Model
Amout of fee(kg) 60 100 120 150 200 300 500
Power of fan(kw) 7.5 11 15 18.5 22 30 45
power of stirring(kw) 0.55 1.1 1.1 1.1 1.1 1.5 2.2
Revolution of stirring(rpm) 8~11
Steam consume(kg/h) 141 170 170 240 282 366 451
Operate time(min) 15-30(It depends on the nature of materials)
Main machine heigh 2700 2900 2900 2900 2900 3300 3500
